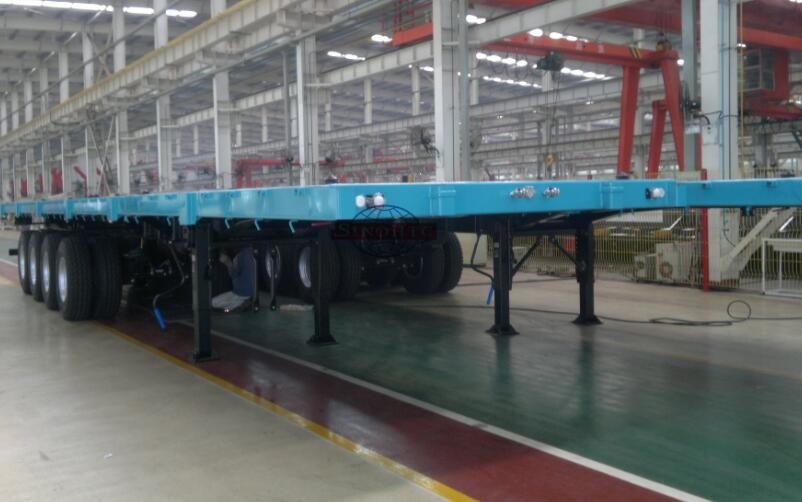

45 tons 4axle 40ft flatbed Container Semitrailer, 4axle flatbe
DimensionTotal Length: 8,000 - 16,500 mm varies according to demand. Lowbed can be extendable
Total Width: 2,500 mm - 3,500 mm varies according to demand
Steel StructureHigh strength steel, Q345, Q4600, Q550, S690
produced in welding construction with gas metal arc welding as “I” crossing from high resistant steel
considering overloads proper to capacity and intended usage
Axle13 - 14 - 16 ton capacity axles, optional FUWA, BPW or other brand
hub centric, with 10 wheel nuts, and automatic slack adjuster
SuspensionMechanical leaf spring suspension or Pneumatic Air suspension
It consists of automatic height adjustment system, Parabolic Z leaf springs
Suspension bellows, shock absorbers restricting extensive shaft movements and vibrations
Spring Leaf90mm(Width)×13mm(Thickness)×10 layers or 100mm×12mm×12 layers
Main BeamHeight: 450mm-520mm
Upper plate: 14mm-25mm Middle plate: 8mm-12mm Lower plate: 16mm-25mm
Brake System and ABSOptional WABCO RE 6 relay valve; T30/30+T30 spring brake chamber; 45L air tanks
WABCO brand ABS or EBS brake system designed according to International Standards
It consists of automatic brake ratchets, brake valves and brake bellows of 30
Electric System24V illumination systems in conformity with the international standards
LED lamp with 7 functions, and 7 pins Sockets (7 wire harness)
Traffic warning panels on the vehicles
| 4 axle 40FT Flatbed 100tons container semi-trailer |
| item | unit | quantity | notice |
| size | | | 17000length*2900width*1580hight,
detail according to the drawing |
| axle | piece | 4 | 20 Ton FUWA |
| tyre | piece | 16 | 12.00R20 |
| rim | piece | 16 | 8.50-20 |
| leaf spring | piece | 8 | 100width*10pieces*16mmthickness |
| braking system | set | | 2 line air braking system with air tank ,emergency relay valve,braking chambers and mechanical slack adjusters. |
| electrical system | set | 1 | 24 volt electrical system.7 pin electrical connector.parking .stop,reverse,number plate and indicator lights.rear lights conform to European standard,rear front and side reflectors |
| suspension | set | 4 | CIMC type,the high quality Q345 steel |
| relay valve | whole vehicle | 1 | WABCO |
| landing gear | pair | 1 | 28T two side operation |
| kingpin | piece | 1 | 90# welded type |
| tie-in | piece | 2 | haldex |
| chamber | piece | 8 | 6 double and 2 single chamber |
| upper and lower wing plates | | | 20/20mm,width146mm,
using the highly quality Q345 steel, |
| twist locks | | 0 | 0 |
| main beam | | | height: 550mm webplate:14mm
using the highly quality Q345 steel |
| side beam | | | 20# channel steel |
| floor | | | 4mm checkered plate |
| cross beam | | | 14# channel steel |
| reflectors | | | Red triangle reflectors at the rear of the trailer and on side |
